Have you ever wondered what makes neodymium magnets so powerful? These magnets are essential in our daily lives, from smartphones to electric vehicles. In this article, we’ll explore the production processes of neodymium magnets and their remarkable magnetic properties. Discover how these tiny wonders impact modern technology.
Neodymium magnets, widely known for their incredible strength, are primarily composed of three key elements: neodymium (Nd), iron (Fe), and boron (B). The chemical formula for these magnets is Nd2Fe14B. This unique combination results in a tetragonal crystalline structure, which is crucial for their impressive magnetic properties.
In addition to the primary elements, other materials may be included to enhance specific characteristics. For instance, praseodymium (Pr) is often added to improve the overall performance of the magnet. Dysprosium (Dy) and terbium (Tb) are also commonly incorporated to enhance high-temperature stability and resistance to demagnetization.
The chemical composition of neodymium magnets can vary significantly based on the desired grade and application. A typical composition might include:
Neodymium (Nd): 29% - 32%
Iron (Fe): 64.2% - 68.5%
Boron (B): 1.0% - 1.2%
Dysprosium (Dy): 0.8% - 1.2%
Other elements: Small amounts of aluminum (Al), niobium (Nb), and cobalt (Co) may also be present to fine-tune the magnetic properties and improve corrosion resistance.
The specific ratios of these components can be adjusted to create different grades of neodymium magnets, each tailored for unique applications.
Different grades of neodymium magnets are produced to meet the varying demands of applications. For example, high-performance magnets used in electric vehicles or wind turbines may contain higher levels of dysprosium to enhance their performance under elevated temperatures. Conversely, standard applications may utilize lower-grade compositions, which are more cost-effective.
The manufacturing process also plays a vital role in determining the magnetic properties. For instance, magnets produced through sintering methods often exhibit superior performance compared to those made using bonded techniques.
Neodymium magnets, known for their exceptional strength, are primarily produced through advanced processes that ensure high performance and durability. The manufacturing techniques can be broadly categorized into two main methods: sintering and bonding.
Sintering: This is the most common method for producing neodymium magnets. It involves compressing a mixture of neodymium, iron, and boron powders, followed by heating them in a controlled atmosphere to form a solid magnet. The process allows for precise control over the magnetic properties and can produce high-density magnets.
Bonding: This method involves mixing neodymium powder with a polymer binder, which is then pressed into shape. While bonded magnets are generally less powerful than sintered magnets, they offer versatility in design and can be produced in complex shapes.
The production of neodymium magnets follows a meticulous series of steps to ensure optimal quality and performance:
Raw Material Preparation: The process begins with the mining and refining of rare earth ores to extract neodymium, iron, and boron.
Alloying: The extracted materials are melted together to form an alloy. This alloying process may include the addition of other elements like praseodymium or dysprosium to enhance specific properties.
Hydrogen Decrepitation: The alloy is subjected to hydrogen decrepitation, which makes it brittle and easier to grind into a fine powder.
Jet Milling: The powdered alloy is then processed through jet milling to achieve a uniform particle size, typically around 3-5 microns.
Compacting: The powder is compacted in a die under an external magnetic field. This step aligns the magnetic domains, enhancing the magnet's strength.
Sintering: The compacted powder is heated in a furnace at high temperatures (above 1000°C) in an inert atmosphere. This process fuses the particles into a solid magnet while maintaining the alignment of the magnetic domains.
Machining: After sintering, the magnets are often machined to achieve precise dimensions and tolerances. This step is crucial for applications requiring exact specifications.

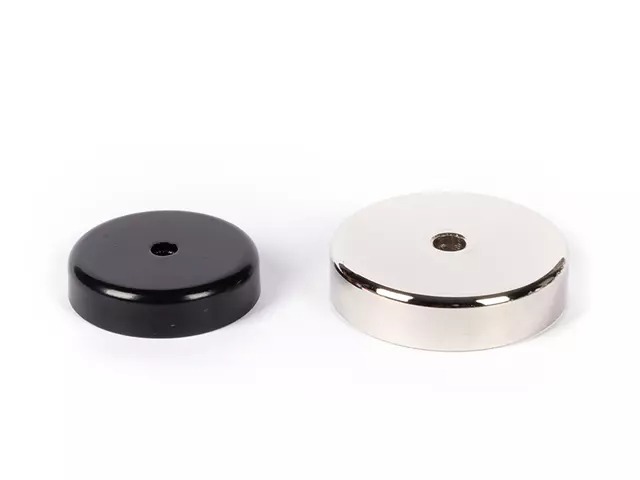

Coating: To protect against corrosion, neodymium magnets are coated with materials such as nickel-copper-nickel or epoxy. These coatings are essential for ensuring longevity in various environments.
Magnetization: Finally, the magnets are magnetized, often using a strong magnetic field to lock in the desired magnetic orientation.
Powder metallurgy plays a critical role in the production of neodymium magnets. This technique allows for the creation of complex shapes and fine control over the microstructure of the magnets. Key advantages include:
High Density: Sintering through powder metallurgy results in high-density magnets with superior magnetic properties.
Tailored Properties: Adjusting the composition and processing conditions allows manufacturers to customize the magnetic strength, coercivity, and thermal stability.
Cost Efficiency: Powder metallurgy can reduce waste and lower production costs, making it a preferred choice in the industry.
Neodymium magnets, known for their remarkable strength, possess a magnetic strength that is significantly higher than that of traditional magnets. The magnetic strength of a magnet is often measured in terms of its maximum energy product, denoted as (BH)max. For neodymium magnets, this value can reach up to 50 MGOe (Mega Gauss Oersteds), making them the strongest commercially available magnets. This exceptional strength is attributed to their unique chemical composition and the manufacturing processes used.
The strength of neodymium magnets allows them to perform well in compact spaces, making them ideal for various applications, from small electronic devices to large industrial machinery. Their ability to produce strong magnetic fields despite their small size is a key reason they are preferred in many modern technologies.
Coercivity is another critical property of neodymium magnets. It refers to the magnet's ability to withstand demagnetization when exposed to external magnetic fields or elevated temperatures. High coercivity means that the magnet retains its magnetization even in challenging conditions. Neodymium magnets typically exhibit high coercivity, often exceeding 12 kOe (kilo Oersteds), which is essential for applications where stability is crucial.
In applications such as electric motors and generators, high coercivity ensures that the magnets maintain their magnetic properties over time, contributing to the overall efficiency and reliability of the devices they are used in. This property is particularly important in electric vehicles and renewable energy systems, where consistent performance is vital.
When comparing neodymium magnets to other types, such as samarium-cobalt (SmCo) and ferrite magnets, it's clear why neodymium magnets are often the preferred choice.
Strength: Neodymium magnets are the strongest among these options, providing significantly higher magnetic force in a smaller volume.
Temperature Stability: While SmCo magnets can handle higher temperatures without losing magnetization, neodymium magnets are more effective in low-temperature applications, although they can lose strength if exposed to excessive heat.
Corrosion Resistance: Neodymium magnets are prone to corrosion and typically require protective coatings, unlike SmCo magnets, which are naturally resistant to corrosion.
Neodymium magnets, known for their incredible strength, are found in countless everyday products. From household items to advanced technology, these magnets enhance functionality and efficiency.
Electronics: Neodymium magnets are essential in devices like smartphones, tablets, and laptops. They are used in speakers, microphones, and hard disk drives, where their compact size and strong magnetic force improve performance.
Toys and Games: Many toys utilize neodymium magnets for their ability to create engaging interactions. Magnetic building blocks and puzzles often feature these powerful magnets, enabling children to explore creativity and engineering concepts.
Home Appliances: Refrigerators and washing machines often incorporate neodymium magnets in door seals and closures. Their strength ensures a tight seal, improving energy efficiency and user convenience.
Neodymium magnets are not just for consumer products; they play a crucial role in various industrial applications:
Motors and Generators: Many electric motors and generators use neodymium magnets to enhance efficiency. Their strong magnetic fields help convert electrical energy into mechanical energy, making them ideal for applications in electric vehicles and renewable energy systems.
Medical Devices: In the medical field, neodymium magnets are vital for MRI machines and other diagnostic equipment. Their strength allows for precise imaging and accurate diagnostics, contributing to better patient outcomes.
Robotics and Automation: Neodymium magnets are widely used in robotics. They provide reliable actuation and positioning in robotic arms and automated systems, enhancing performance in manufacturing and logistics.
As the world shifts towards sustainable energy solutions, neodymium magnets are becoming increasingly important:
Wind Turbines: Neodymium magnets are integral to the generators in wind turbines. Their strength allows for efficient energy conversion, making wind power more viable and cost-effective.
Electric Vehicles (EVs): Neodymium magnets are crucial in the motors of electric vehicles. They help improve the energy efficiency and performance of EVs, enabling longer ranges and faster acceleration. This makes them a key component in the push for greener transportation solutions.
Neodymium magnets are renowned for their exceptional strength and versatility. Their production involves complex processes like sintering and bonding, which enhance their magnetic properties. Key elements such as neodymium, iron, and boron contribute to their effectiveness. Future advancements in magnet technology may focus on sustainability and reducing reliance on rare earth elements. TaiXiong offers high-quality neodymium magnets that provide unique benefits, ensuring reliability and performance across various applications. Their commitment to innovation makes them a valuable partner in this industry.
A: Neodymium magnets are primarily composed of neodymium (Nd), iron (Fe), and boron (B), which contribute to their exceptional magnetic properties.
A: Neodymium magnets are produced through sintering or bonding methods, involving steps like raw material preparation, alloying, and magnetization.
A: The unique chemical composition and manufacturing processes of neodymium magnets result in their remarkable strength compared to other types of magnets.
A: Neodymium magnets offer high magnetic strength, compact size, and versatility, making them suitable for various applications, from electronics to industrial uses.
A: Neodymium magnets are the strongest commercially available magnets, outperforming ferrite and samarium-cobalt magnets in terms of magnetic force and efficiency.
