Electro Magnets play a vital role in modern industrial processes, from assembly lines to robotic arms. But how do you ensure you're selecting the right one for your needs? In this article, we will guide you through the essential factors to consider when choosing an Electro Magnet, including magnetic force, material compatibility, and environmental protection. By the end, you will understand how to match the right magnet to your application, ensuring safe and efficient operation.

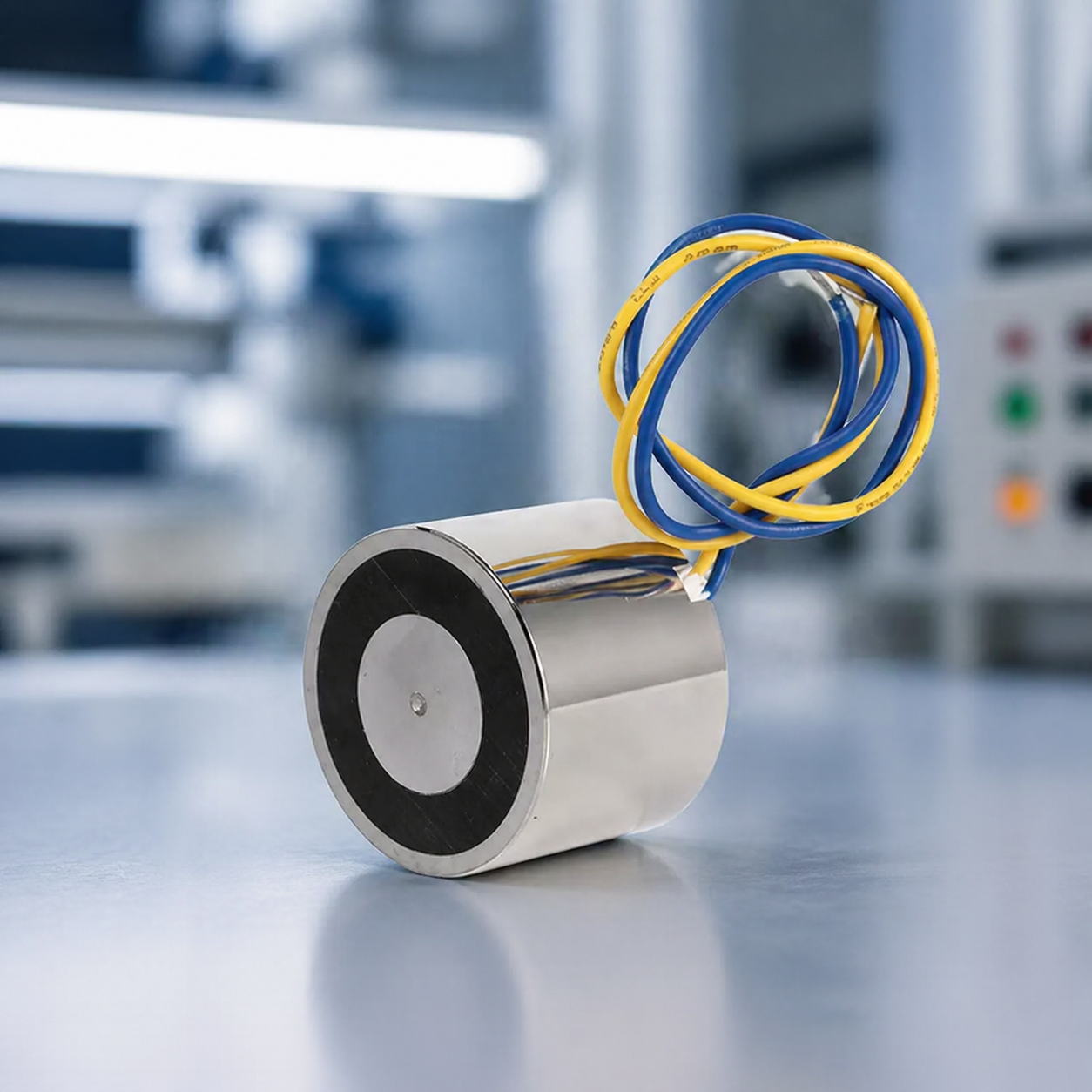

An Electro Magnet is a type of magnet in which the magnetic field is created by an electric current passing through a coil of wire. The key components of an electromagnet are simple, yet essential for its functionality. These include:
Electromagnet coil: This is the wire wound into a coil, which creates a magnetic field when electricity flows through it.
Electric current: The flow of electric charge is what powers the electromagnet, creating the magnetic field.
Magnetic field: The electric current generates this field, allowing the electromagnet to attract or repel ferromagnetic objects.
Switch-on/switch-off mechanism: This allows the electromagnet to be turned on or off by controlling the electric current, making it a versatile tool in various industrial applications.
By switching the current on or off, the electromagnet can either hold or release a workpiece, providing control over materials in an industrial environment. This makes electromagnets much more flexible compared to permanent magnets, as they can be deactivated when needed.
Electromagnets are widely used in industrial environments due to several key advantages over permanent magnets. These include:
Controllability: The ability to turn the electromagnet on and off makes it more versatile. Unlike permanent magnets, which provide a constant magnetic force, electromagnets allow manufacturers to control the magnetic field precisely when needed.
Stronger Force: Electromagnets can generate a much stronger magnetic field than permanent magnets, making them ideal for heavy-duty applications like lifting large loads or holding objects in place during manufacturing processes.
Adaptability: Electromagnets can be customized for various shapes, sizes, and power levels, offering flexibility for diverse industrial needs.
Advantage | Electro Magnet | Permanent Magnet |
|---|---|---|
Controllability | Can be switched on/off | Cannot be turned off once magnetized |
Strength | Stronger magnetic force, customizable | Limited by material properties |
Adaptability | Customizable in shape and power | Fixed shape and strength |
Electromagnets are used across a variety of industries, including but not limited to:
Automation Systems: Electromagnets are used in robotic arms, automated sorting systems, and assembly lines to hold and release workpieces.
Material Handling: In factories and warehouses, electromagnets help with lifting and moving metal parts or raw materials.
Sorting: Electromagnets are key in sorting systems, especially for separating ferrous materials from non-ferrous ones.
Assembly Lines: Used to hold parts in place during the manufacturing process, ensuring accurate and efficient assembly.
In these applications, the ability to turn the electromagnet on and off provides more precise control over the production process. Whether it’s for lifting, sorting, or holding, electromagnets provide an adaptable and powerful solution.
When selecting an Electro Magnet, one of the most critical factors is determining the holding force. Holding force refers to the strength of the magnetic field generated by the electromagnet, which is responsible for keeping the workpiece in place. It is important to ensure that the holding force is sufficient to securely hold the workpiece without causing any risks or failures during operation.
How to Determine the Required Holding Force:
Workpiece Weight: The most basic consideration is the weight of the workpiece. Heavier objects require a stronger magnet to hold them in place.
Application Type: Consider whether the electromagnet is used for stationary workpieces or if it needs to hold moving parts. In automated settings, the magnet may need to hold objects during dynamic movement.
Safety Margin: It’s always recommended to choose a magnet that offers a safety margin — a force that exceeds the expected weight of the workpiece, to ensure no slippage occurs.
The material of the workpiece plays a crucial role in the effectiveness of an Electro Magnet. Only ferromagnetic materials (such as iron, steel, and nickel) can be magnetized effectively by an electromagnet. Non-ferromagnetic materials, like aluminum or plastic, will not interact with the magnetic field in the same way, leading to significantly reduced performance.
Ferromagnetic Materials: These materials are essential for electromagnets to generate an efficient magnetic field. The more magnetic permeability a material has, the better the electromagnet will perform.
Workpiece Thickness: The thickness of the material affects the overall magnetic interaction. Thicker workpieces allow a stronger magnetic connection, while thin materials might not be fully magnetized, causing a weaker hold.
An air gap is the space between the electromagnet and the workpiece, and it plays a significant role in the magnet's holding force. Even a small gap can drastically reduce the magnetic field strength, resulting in a weak hold and potentially causing the workpiece to slip.
Air Gap Impact: The larger the air gap, the more resistance the magnetic field encounters, weakening its hold. Any non-magnetic material or irregularities in the surface can create an air gap, diminishing performance.
Surface Contact: For optimal holding performance, the electromagnet's surface should make full contact with the workpiece. Flat, clean, and large contact surfaces provide better magnetic flux transfer, leading to stronger force.
When choosing an Electro Magnet, it’s crucial to ensure the surface of the electromagnet and the workpiece are clean, flat, and smooth to minimize air gaps. Cleaning and preparing the surface before application will significantly enhance magnetic performance and overall holding strength.
When choosing the right Electro Magnet for industrial applications, understanding the power requirements is crucial. The energy consumption of an electromagnet directly impacts both its operational efficiency and cost-effectiveness.
Power Rating: Different electromagnets have different power ratings, usually indicated in watts (W). It’s important to match the electromagnet's power rating to your system's available power supply.
Magnetic Force vs Power Consumption: Stronger magnets often consume more power, so selecting the right magnet depends on finding a balance between the force you need and how much power you can allocate to it.
Voltage Consideration: Most electromagnets operate at standard industrial voltages (12V, 24V, 110V, 220V). Be sure to verify compatibility with your existing electrical systems.
Electromagnets come in various models designed for different applications. More powerful electromagnets may draw more energy, but they also perform more demanding tasks.
Model Type | Power Consumption (W) | Holding Force (N) | Ideal Application |
|---|---|---|---|
Compact Electro Magnet | 1 - 5 W | 10 - 200 N | Light-duty automation |
Industrial Electro Magnet | 10 - 50 W | 200 - 1000 N | Material handling, lifting |
High-Power Electro Magnet | 100 - 300 W | 1000 - 5000 N | Heavy-duty lifting, large metal parts |
Choosing a model with the right balance of energy consumption and magnetic strength ensures the electromagnet works effectively without wasting power or overloading your system.
An important factor in selecting the right Electro Magnet is its duty cycle. The duty cycle refers to the proportion of time an electromagnet can operate continuously without overheating or damaging the system.
Duty Cycle Defined: The duty cycle is typically expressed as a percentage. A 50% duty cycle means the electromagnet can be on for half of the time and must be off for the other half to prevent overheating.
Impact on Performance: Electromagnets with higher duty cycles are designed for continuous operation, while those with lower duty cycles are better suited for short, intermittent use. Choosing the correct duty cycle is crucial for preventing failure due to heat buildup.
Continuous Operation: If your application requires the electromagnet to stay on for extended periods, choose one with a high duty cycle (e.g., 100% or 75%).
Intermittent Use: For tasks that involve frequent on-and-off cycles, a lower duty cycle (e.g., 50%) is suitable, as it allows for cooling between cycles.
By evaluating how long and how frequently the electromagnet will be active, you can select a model that fits your needs, ensuring it operates safely and efficiently without excessive energy usage.
Electromagnets used in industrial settings often face challenging environments. Whether it’s dust, moisture, or high temperatures, choosing an electromagnet with the right environmental protection is critical for ensuring long-term durability and performance.
IP Ratings: The Ingress Protection (IP) rating is a standardized measure of an electromagnet’s ability to resist dust and moisture. Higher IP ratings (e.g., IP65) indicate better resistance to environmental factors.
Waterproof and Corrosion Resistance: For applications in wet or corrosive environments, a waterproof and corrosion-resistant electromagnet is necessary to prevent degradation over time.
Temperature Range: Some electromagnets are designed to operate in extreme temperatures. Check whether the electromagnet can handle the typical temperature ranges of your industrial setting.
Corrosive Environments: For corrosive environments like marine or chemical processing, choose electromagnets with corrosion-resistant coatings or stainless steel housings.
Wet or Humid Environments: If the electromagnet will be exposed to water or high humidity, an IP65 or IP67-rated electromagnet is ideal for resisting water and dust ingress.
Extreme Temperatures: For high-temperature environments, ensure the electromagnet is rated to withstand elevated temperatures without losing performance.
When selecting an electromagnet for harsh conditions, ensure it’s equipped with the proper protection ratings and materials to prevent damage and ensure reliable performance over time.
The release mechanism is one of the most critical aspects when selecting an Electro Magnet. It defines how and when the electromagnet releases a workpiece after holding it securely. The basic working principle for holding and releasing workpieces involves the activation and deactivation of the magnetic field.
Energized to Hold: In this mechanism, the electromagnet is powered on to generate a magnetic field that holds the workpiece. Once the electromagnet is energized, the force is active, and the workpiece is securely held in place.
De-energized to Release: When the power to the electromagnet is cut off, the magnetic field is removed, and the workpiece is released.
Pros and Cons of Energized-to-Hold and De-energized Release Systems
Mechanism | Pros | Cons |
|---|---|---|
Energized to Hold | - Reliable holding force when energized | - Requires continuous power |
- Simple and effective for holding tasks | - Energy consumption during use | |
De-energized to Release | - Energy-efficient (no continuous power) | - Residual magnetism could interfere |
- Quick and easy release process | - Need for additional components to assist release |
The energized-to-hold mechanism is ideal for static holding applications where the workpiece stays in place for a long time, whereas de-energized-to-release systems are typically more energy-efficient and used when the workpiece needs to be released quickly.
Residual magnetism can be a significant issue in certain industrial applications, especially when the workpiece needs to be released with precision. Residual magnetism refers to the leftover magnetic force that remains after the electromagnet is de-energized. This leftover magnetism can cause the workpiece to stick to the magnet or interfere with the next operation.
Unreliable Release: Workpieces might not release immediately, causing delays or requiring manual intervention to free the part.
Production Disruptions: If residual magnetism remains, it can lead to production slowdowns or affect the next part in an automated process.
Spring-loaded Ejector Pins: These pins automatically push the workpiece away from the electromagnet once it’s de-energized, minimizing residual magnetism and ensuring a clean release.
Armature Plates: These metal plates can be added to the workpiece or electromagnet to help enhance the release process, reducing the chance of magnetism lingering.
In industrial automation, selecting the correct release mechanism is essential for smooth and efficient operation. The choice of release system directly impacts the efficiency, speed, and safety of automated systems such as robotic arms and automated conveyors.
Speed and Precision: In automated systems, the release mechanism should be quick and precise to ensure that parts are released at the right time without causing delays in production.
Energy Efficiency: Depending on the application, it’s important to choose a release mechanism that balances power consumption and operational demands.
Reliability: The release mechanism must be reliable, especially in high-speed, high-frequency operations where failure to release could disrupt the entire system.
Robotic Arms: In manufacturing, robotic arms often need to pick up and release parts with high accuracy and speed. A reliable release system is essential for maintaining continuous workflow and ensuring part handling is smooth.
Automated Conveyors: In material handling systems, electromagnets are often used to lift or move materials along conveyors. The release mechanism must be efficient to keep the conveyor system moving without unnecessary pauses.
Electromagnets used in automation applications need to support high efficiency and quick release to ensure that production processes remain fast and smooth. TaiXiong’s release system options, including spring-loaded ejector pins and armature plates, can be customized to fit the specific needs of industrial automation applications, providing a reliable solution to common release challenges.
Choosing the right Electro Magnet for industrial holding applications involves understanding key factors like magnetic force, power requirements, workpiece material, duty cycle, and environmental conditions. It's important to match the electromagnet's strength with the load and ensure it performs reliably in your specific environment. TaiXiong's Electro Magnets are designed to deliver high efficiency, customizable force, and long-lasting durability, making them a great choice for various industrial uses. TaiXiong ensures each product meets high standards for performance and customer satisfaction.
A: An Electro Magnet is a magnet that generates a magnetic field through an electric current. When powered, it holds ferromagnetic materials, and when de-energized, the workpiece is released.
A: Consider factors such as the weight of the workpiece, required holding force, material type, and environmental conditions. Ensure the magnet matches the system’s voltage and duty cycle needs.
A: The duty cycle determines how long an electromagnet can stay on before overheating. It’s crucial for applications with high-frequency or continuous operation.
A: Only ferromagnetic materials interact with electromagnets. Ensure your workpiece is made of materials like iron or steel for effective performance.
A: Yes, moisture, corrosion, and extreme temperatures can reduce efficiency. Choose a magnet with the right protection rating for harsh environments.
