Magnetic circuit design makes a way for magnetic flux to move through parts.
A magnetic circuit leads magnetic flux in order through areas with different shapes and materials. Each area adds reluctance, which changes the total magnetic potential drop.
Closed-loop paths let magnetic flux move easily. The process is like electrical circuits. Studying and improving can make magnetic flux more even and dense, which helps sensors work better.
To understand magnetic circuits, you need to see how magnetic flux travels in closed loops. This design helps devices like motors and sensors work better and use less energy.
Picking the right materials is very important. Materials that lose less energy and work well make magnetic circuits better and save energy.
Using computer models and real tests helps make designs better. This method finds problems early and makes magnetic circuits work best.
Image Source: unsplash

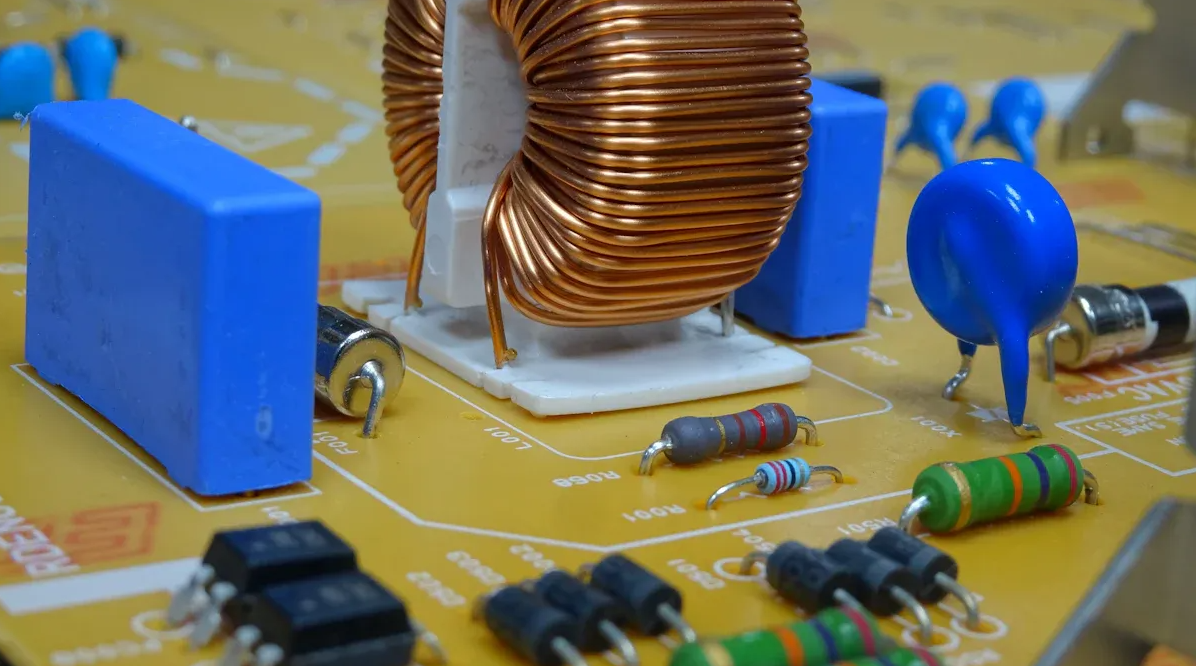

Magnetic circuit design begins by learning how magnetic flux moves in a closed path. A closed loop keeps magnetic flux inside and makes the circuit work better. The magnetic circuit has a few main parts:
| Component | Description |
|---|---|
| Solid Steel Rotor | Rotor core and poles help make magnetic flux. |
| Air Gap | Keeps rotor and stator apart, adds reluctance, and affects how stable it is. |
| Laminated Steel Stator Core | Stator teeth and yoke finish the magnetic circuit. |
The air gap is important because it stops the rotor and stator from touching. It also decides how much magnetic flux can go through. Closed-loop shapes like U-shaped, C-shaped, and ring cores are used in motors, sensors, and magnetic separators.
Magnetic circuit design uses an idea from electrical circuits. In a magnetic circuit, magnetomotive force (MMF) pushes magnetic flux through reluctance. This is like voltage pushing current through resistance. The formulas are:
Φ = F / R
MMF is like voltage, magnetic flux is like current, and reluctance is like resistance. This idea helps with math, but real magnetic circuits can be harder because magnetic materials do not always act in a simple way.
The B-H curve shows how a material acts when a magnetic field is present. It draws magnetic field strength (H) against magnetic flux density (B). The curve is not straight. It makes a loop called hysteresis, which means the material remembers past magnetic fields. The B-H curve helps engineers choose the best material for good performance.
| Characteristic | Description |
|---|---|
| Relationship | Shows how magnetic field strength (H) connects to magnetic flux density (B). |
| Non-linearity | The curve is not straight; it makes a hysteresis loop. |
| Key behaviors | Shows saturation, remanence, and coercivity. |
| Memory effect | The curve changes based on the magnetic field’s history. |
| Importance | Helps explain how materials change energy output and performance in magnetic circuit design. |
Magnetic circuit design uses the B-H curve to pick materials for different jobs, making sure the circuit works well and lasts longer.
Image Source: pexels
The first thing to do is set what the circuit needs to do. Engineers must know the device’s job and how much magnetic flux is needed. They also look at how much space is available for the circuit. For example, motors that need to work well use strong magnetic fields in small spaces. Designers think about what the device will be used for, like sensors or transformers. Clear requirements help guide the design and make sure devices work as expected.
Calculations help engineers guess how the magnetic circuit will work. They use formulas to find magnetic flux, magnetomotive force, and reluctance. These numbers help make sure the circuit works well and is efficient. The table below shows the most used formulas:
| Formula | Description |
|---|---|
| Φ = ∫ B · dA | Magnetic Flux: Measures total magnetic field through a surface. |
| F = I l × B | Lorentz Force: Explains force on current-carrying conductors. |
| ∮ H · dl = I_enclosed | Ampere’s Law: Links magnetic field intensity to enclosed current. |
| B = μ H | B-H Relationship: Relates flux density to field intensity. |
| ℱ = N I | Magnetomotive Force: Drives magnetic flux in windings. |
| ℛ = l / (μ A) | Reluctance: Opposition to magnetic flux. |
| Φ = ℱ / ℛ | Ohm’s Law for Magnetic Circuits: Describes flux in closed paths. |
| ε = -N dΦ/dt | Faraday’s Law: Connects changing flux to induced EMF. |
Tip: Small mistakes in these calculations can change how well the circuit works. For example, errors in stress modeling can make iron losses seem bigger than they are. Mistakes in size from making parts can also affect performance.
Picking the right materials is important for magnetic circuit design. Materials should guide magnetic flux with low losses and high efficiency. The table below lists common materials and their good and bad points:
| Material | Advantages | Disadvantages |
|---|---|---|
| Solid Steel | Low reluctance, economical for yokes | Heavy, not for small applications |
| Low Carbon Steel | Good for pole pieces, can be annealed | Needs special treatment, larger parts needed |
| Hiperco 50 | High saturation flux, compact designs | Expensive, limited availability |
| Alnico | Good temperature stability, high coercivity | Expensive, brittle |
| Sm-Co | High energy, good temperature stability | Expensive, less available |
| Nd-Fe-B | Very high energy density, modern uses | Sensitive to temperature, corrosion issues |
| SMC | Good for complex shapes, low losses, lightweight | Higher cost, not for all applications |
Permanent magnets, like rare earth types, make circuits smaller and lighter. Materials with high permeability, such as SUS430 and SPCC, help guide the magnetic field and boost performance. Picking the right material lowers hysteresis and eddy current losses, which makes the circuit more efficient.
Closed circuit shapes keep magnetic flux inside and lower losses. Common shapes are U-shaped, C-shaped, and ring cores. These are used in motors and sensors. How magnetic domains are arranged inside the material also affects energy loss. A special magnetic vortex state at the edge can help save energy. Good closed circuit design makes devices work better and last longer.
Engineers use analysis and optimization to improve magnetic circuits. They use computer tools to test designs before building them. Software like Ansys HFSS, MaxFem, and CST EMC STUDIO can show how magnetic fields move in the circuit. Topology optimization helps find the best shape for iron yokes and increases the BL parameter. Engineers also use pulse width modulation to make coils smaller and lighter. Making coil design better and lowering stroke needs can cut costs and make circuits more efficient.
Note: Testing real circuits is very important. Engineers check results from computer models and real tests to find mistakes and make designs better. This helps build magnetic circuits for many uses, like motors and sensors.
Magnetic circuit design follows important steps to work well.
The magnet’s shape and where it is placed help control flux.
The core material and air gap help lower losses.
Checking and improving the design makes it work better.
| Parameter | Impact on Performance |
|---|---|
| Offset angle of lower PM | High |
| Pole shoe width | High |
Try using computer tests and real measurements to learn more.
Electric motors
Transformers
Magnetic sensors
Loudspeakers
MRI machines
These devices use magnetic circuits to move and control magnetic flux.
Material choice changes how well the device works. It also affects size and cost. Sensors need materials with high permeability. Motors and transformers use materials that lose less energy.
A closed-loop path keeps magnetic flux inside the circuit. This helps save energy and makes the device more reliable. Motors, sensors, and transformers work better with this design.
