Have you ever wondered whether a 12V or 24V Electro Magnet is better for your system? The choice between these two can significantly impact your application’s efficiency and performance. In this article, we will explore the key differences between 12V and 24V electromagnets, helping you make the right choice based on your needs. You’ll learn about the advantages of each, when to use them, and the factors that should guide your decision.

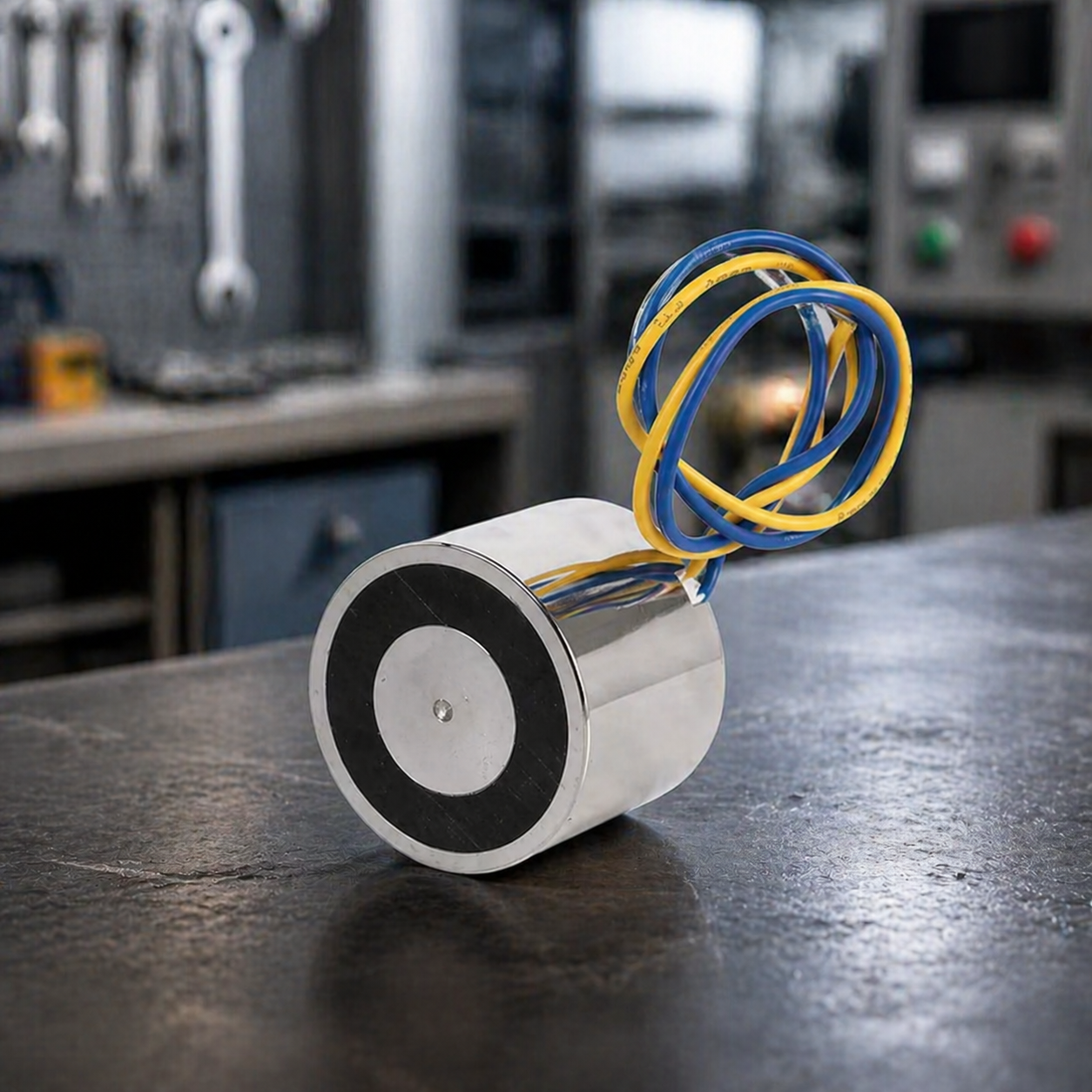

An Electro Magnet is a type of magnet that uses electric current to produce a magnetic field. Unlike permanent magnets, which are always magnetic, an electromagnet only generates a magnetic force when an electric current flows through it. This is achieved by wrapping a wire, usually copper, into a coil and passing current through the wire.
Electromagnets are commonly used in various industrial and mechanical applications where controllable magnetic fields are needed. These applications include:
Automation: Used in robotic arms and automated sorting systems.
Machining: Holding workpieces in place during manufacturing or assembly.
Transportation: Electromagnets are used in magnetic levitation systems for high-speed trains.
Medical Equipment: Employed in MRI machines for creating strong magnetic fields.
In summary, electromagnets are vital tools in industries that require strong, controllable magnetic fields that can be easily turned on and off.
An electromagnet functions by creating a magnetic field when electrical current passes through a wire. The wire is coiled around a magnetic core, and when the current flows through the coil, the core becomes magnetized, turning the wire into an electromagnet. The strength of this magnetic field depends on several factors, such as the number of coil turns, the material of the core, and the amount of current passed through the wire.
When current is applied, the magnetic field is created around the coil. This magnetic field can hold or attract ferromagnetic materials like steel or iron. When the current is switched off, the magnetic field disappears, and the magnet loses its hold.
This ability to switch the magnet on and off is crucial for many industrial applications. For example, in a sorting machine, an electromagnet can lift and release objects automatically depending on the presence of electric current.
The strength of an electromagnet can be adjusted by modifying:
The current: Increasing the current boosts the magnetic force.
The number of coil turns: More loops in the coil enhance the field's strength.
The core material: Using high-quality ferromagnetic material in the core increases efficiency.
These elements allow an electromagnet to be customized for specific tasks, providing versatile solutions for industrial applications.
The primary difference between 12V and 24V electromagnets lies in the voltage used to power them. In simple terms, 12V electromagnets are powered by a 12-volt power supply, while 24V electromagnets use a 24-volt supply. This difference impacts how much current is drawn by the electromagnet and its overall power consumption.
Voltage | Current Draw | Power Consumption |
|---|---|---|
12V | Higher current | Higher energy usage |
24V | Lower current | More efficient energy use |
The voltage directly affects the current: A 12V electromagnet draws more current for the same power, whereas a 24V electromagnet draws less current, resulting in lower energy consumption for the same performance. This can be a significant factor in energy efficiency and system compatibility when selecting an electromagnet for your application.
12V electromagnets are particularly beneficial in scenarios where power systems are limited to 12V DC, such as in battery-powered devices and small equipment. The lower voltage and higher current draw mean that these electromagnets are ideal for applications requiring compact designs with limited power supply.
Some of the benefits of choosing a 12V electromagnet include:
Ideal for small systems: Many small machines or handheld devices already use a 12V DC power system, making it easier to integrate an electromagnet.
Portable power systems: Battery-powered applications, like portable lifting devices, can easily use 12V electromagnets without the need for external power converters.
Shorter wiring layouts: The higher current draw allows 12V electromagnets to work efficiently over shorter distances without causing significant voltage drop or power loss.
However, it’s important to note that 12V electromagnets may not be suitable for larger, industrial applications where greater holding force or longer cable runs are required.
24V electromagnets are typically preferred in industrial settings due to their lower current draw and better power efficiency. When using a 24V electromagnet, the current is lower compared to a 12V model, which makes it more energy-efficient, especially when multiple magnets are used together in larger systems.
Here’s why you might opt for a 24V electromagnet:
More energy-efficient: Since it draws less current for the same power, it’s ideal for longer cable runs or larger systems where high power efficiency is critical.
Better compatibility in industrial settings: Many industrial machines and control systems operate on 24V, making 24V electromagnets more compatible with existing infrastructure.
Larger systems and longer cable runs: For applications that require multiple electromagnets or need to cover long distances, 24V is the better choice due to its lower current draw, which reduces power loss over long cables.
A 24V electromagnet is typically used in automation systems, material handling, and robotic applications, where efficiency and control are paramount. This makes it the go-to choice for large-scale industrial projects requiring more precise and energy-efficient magnetic control.
When selecting an electromagnet, one of the first considerations should be the required holding force. The holding force determines how much weight or material the electromagnet can hold or lift, which is critical for applications involving large or heavy workpieces.
12V electromagnets typically have a lower holding force compared to 24V models, making them ideal for lighter tasks or smaller objects.
24V electromagnets can provide a stronger holding force, making them better suited for heavy-duty tasks, industrial applications, or large-scale automation systems.
To choose the right holding force, consider:
The type of workpieces: Are you holding small parts (12V may suffice) or large, heavy materials (24V is better)?
The frequency of operation: If the electromagnet needs to operate continuously or with higher power, 24V may be the better option for better heat management and efficiency.
Another factor to consider is the existing power supply in your system. It’s important to choose an electromagnet that is compatible with the voltage of your power system to ensure seamless operation and avoid unnecessary modifications.
12V systems: If your equipment already uses a 12V power supply, integrating a 12V electromagnet would be straightforward without needing additional power converters. This is often the case in small systems or battery-powered applications.
24V systems: If your equipment operates on a 24V DC power supply, a 24V electromagnet would be a natural fit. Industrial applications often use 24V, making 24V electromagnets easier to integrate into larger systems with longer cable runs and more complex wiring.
Power Supply Compatibility | 12V Electro Magnet | 24V Electro Magnet |
|---|---|---|
Existing system voltage | Ideal for 12V systems | Compatible with 24V systems |
Cable length | Best for short runs | Better for longer distances |
Application | Small devices, portable | Industrial machines, automation |
If you already have a power system in place, it’s generally best to match the electromagnet voltage with the system voltage to minimize the need for adjustments.
Duty cycle and heat generation are important when considering how frequently and for how long the electromagnet will be in use. The duty cycle refers to how much time the electromagnet is energized (on-time) compared to when it is de-energized (off-time).
Higher duty cycles lead to more heat generation, which can affect the electromagnet’s performance. Both 12V and 24V electromagnets can generate heat, but the current draw from a 12V electromagnet will typically result in more heat buildup compared to a 24V electromagnet at the same power level.
For high-frequency or continuous use:
24V electromagnets are better for high-duty cycles, as they tend to have lower current draw and can handle continuous operation better without overheating.
12V electromagnets, while effective for light-duty tasks, may not perform as efficiently in high-frequency applications due to their higher current draw, which leads to more heat.
Advice for Choosing the Right Electromagnet Based on Duty Cycle and Heat
If your application involves frequent on-off cycles, choose a 24V electromagnet to minimize heat buildup and maintain better performance.
For intermittent use or short durations, a 12V electromagnet will work effectively as long as the current and heat are monitored.
In general, 24V electromagnets are better suited for continuous and high-demand applications where heat and long-term stability are critical.
A 12V electromagnet is ideal for applications where power supply systems are designed for lower voltage or when space is constrained. It is particularly beneficial in small systems and portable equipment, where energy efficiency and minimal current draw are critical. Here are some scenarios where a 12V electromagnet is the best choice:
Battery-powered devices: If your system is battery-operated or runs on low-voltage circuits, a 12V electromagnet is a great match. It ensures that the electromagnet is compatible with the power supply, and the system can run efficiently without requiring an additional power converter.
Short-distance wiring: 12V electromagnets are great for systems with short wiring layouts, where the current draw is manageable, and power loss due to long cable runs isn’t a concern.
Compact and small devices: When space is limited, such as in small automation systems or consumer electronics, a 12V electromagnet fits well without adding complexity.
Advantages of a 12V Electromagnet:
Energy efficiency: 12V electromagnets typically draw higher current but are designed for smaller, less demanding tasks, which may offer better energy usage for certain applications.
Ease of installation: It’s often easier to integrate into devices or systems that already use a 12V power supply, simplifying the overall design and reducing the need for additional components.
24V electromagnets are generally better suited for industrial applications where higher power stability, greater holding force, and longer operational durations are required. Here’s when you should consider using a 24V electromagnet:
Industrial automation: For larger machines or industrial processes that require continuous operation or high-duty cycles, a 24V electromagnet offers the power and efficiency needed to handle high demands. Its ability to operate efficiently with a lower current makes it suitable for systems requiring reliable, long-term performance.
Larger systems: If your electromagnet needs to handle more substantial workpieces or larger equipment, such as in heavy machinery or large assembly lines, 24V electromagnets provide the necessary holding force while maintaining energy efficiency.
Long cable runs and multiple electromagnets: In systems where multiple electromagnets are connected or where wiring distances are long, a 24V electromagnet reduces the current drawn, improving power distribution and minimizing energy loss across longer cables.
Advantages of a 24V Electromagnet:
Lower current draw: 24V electromagnets consume less current, making them more efficient for industrial settings where many electromagnets are used simultaneously.
Improved performance in heavy-duty applications: They are designed to handle higher holding forces and operate in environments requiring more robust systems.
Compatibility with 24V control systems: In industrial setups where 24V systems are the standard, these electromagnets integrate seamlessly, simplifying setup and compatibility.
Choosing between a 12V and a 24V electromagnet ultimately depends on your specific operational needs. Several factors should guide your decision-making process:
Factor | 12V Electromagnet | 24V Electromagnet |
|---|---|---|
System Voltage | Best for 12V DC systems | Ideal for 24V industrial systems |
Holding Force | Suitable for lighter tasks | Ideal for heavy-duty and industrial tasks |
Duty Cycle | Best for intermittent, low-frequency use | Perfect for continuous, high-frequency use |
Cable Length | Works best with short cable runs | Better for long cable runs and multiple magnets |
Power Efficiency | Less efficient for large applications | More efficient for industrial-scale operations |
When deciding, consider these core aspects:
System Voltage Compatibility: Ensure that your electromagnet matches the power supply voltage.
Holding Force Needs: Evaluate whether the required holding force fits better with a 12V or 24V electromagnet.
Duty Cycle and Heat: Consider whether your application will require continuous use or if intermittent operation will suffice.
Current and Efficiency: If minimizing current draw and optimizing energy use is a priority, a 24V electromagnet will be more suitable for large systems or applications requiring efficiency.
By evaluating these factors based on your specific needs and environment, you can make a more informed decision on whether a 12V or 24V electromagnet is the right fit for your system.
The choice between DC 12V and 24V electromagnets depends on factors like system voltage, holding force, duty cycle, and application needs. 12V electromagnets are ideal for small systems, portable devices, and short-distance wiring, offering energy efficiency and easy integration. 24V electromagnets are suited for industrial applications requiring greater holding force, long cable runs, and continuous operation, offering better power efficiency. TaiXiong provides a range of electromagnets with varying holding force, low power consumption, and durability, catering to diverse industrial needs.
A: The key difference lies in the voltage used to power the electromagnet, with 12V typically drawing more current and being ideal for smaller applications, while 24V is better for larger systems with longer cable runs.
A: Choose a 12V electromagnet when working with small devices, portable equipment, or systems that already use a 12V power supply, ensuring compatibility and ease of installation.
A: A 24V electromagnet is essential in industrial automation, larger systems, and applications requiring higher efficiency, stronger holding force, and compatibility with 24V power supplies.
A: Consider factors such as system voltage, required holding force, duty cycle, and the environment in which the electromagnet will be used to make an informed decision.
A: TaiXiong offers reliable electromagnets with various holding forces, low power consumption, and durable designs, providing customized solutions for industrial applications with high performance and energy efficiency.
